Screenshots

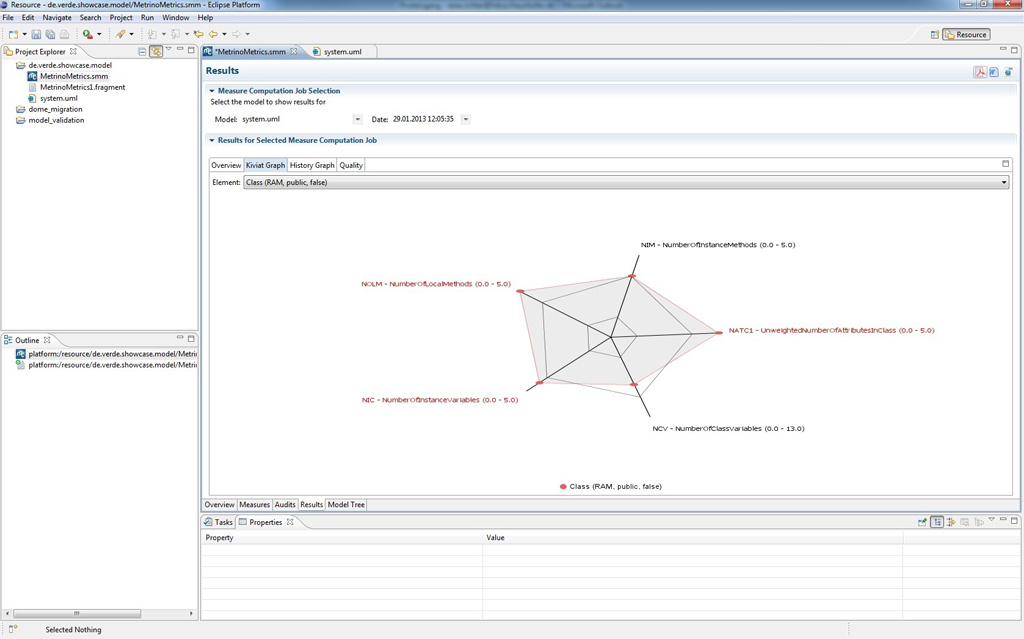

Visualization in Kiviat Diagram

Visualization of metric computation results in kiviat diagram

Videos

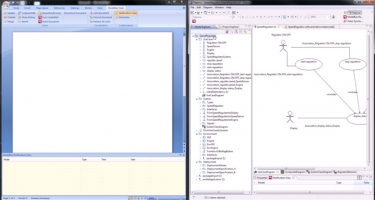

Metrino Service and Word Adapter for ModelBus

This video shows the Metrino ModelBus service which works on an SMM model and which computes metrics on models. The service is triggered automatically when checking in a new version of the UML model and generates a report as a Word document. This report can be read by using the ModelBus Adapter for fetching it from the ModelBus.

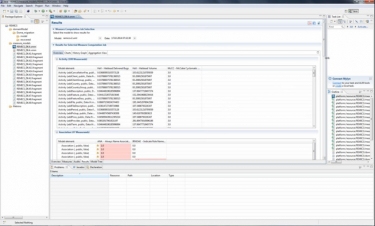

Evaluating Models with Metrino

This video shows how to use the Metrino user interface in order to validate a emf based model. Metrino can be used to define certain validation rules and metrics. Both help to assess a model and to check certain properties of the model. Metrino us based in SMM and uses OCL and Java based rules. Metrino also provides result views as tables or graphs.
