Screenshots and Videos

Requino has a rich user interface supporting graphical and textual inputs and presentations.

You are here: ProductsRequinoScreenshots and Videos

Screenshots

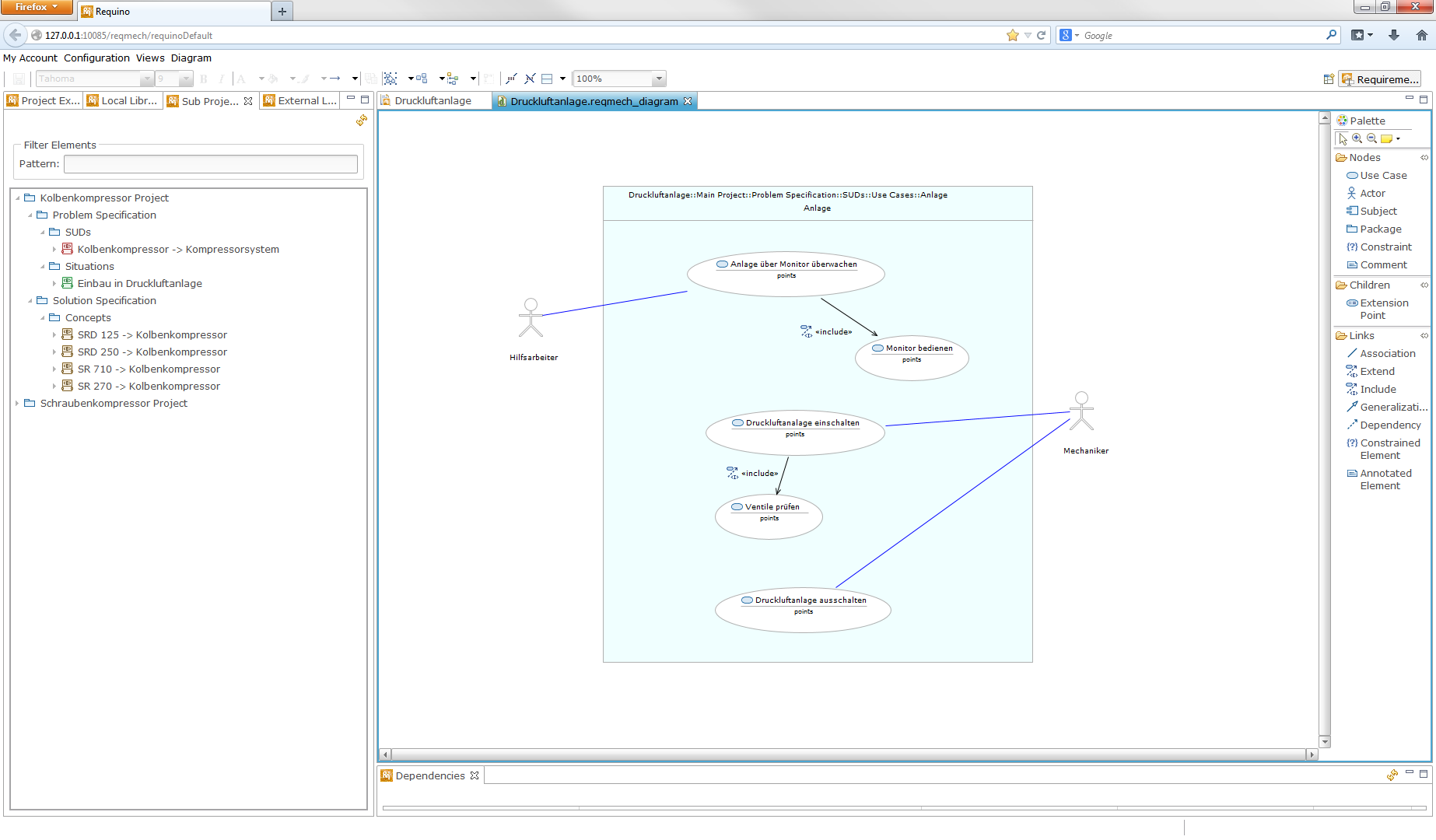

Diagrams

Requino supports different types of UML/SysML diagrams, namely Activity Diagrams, State Machine Diagrams, Use Case Diagrams, Internal Block Diagrams, and Block Definition Diagrams. Diagrams can be used for multiple purposes, e.g. refining requirements, designing the structure of concepts, or defining use cases.

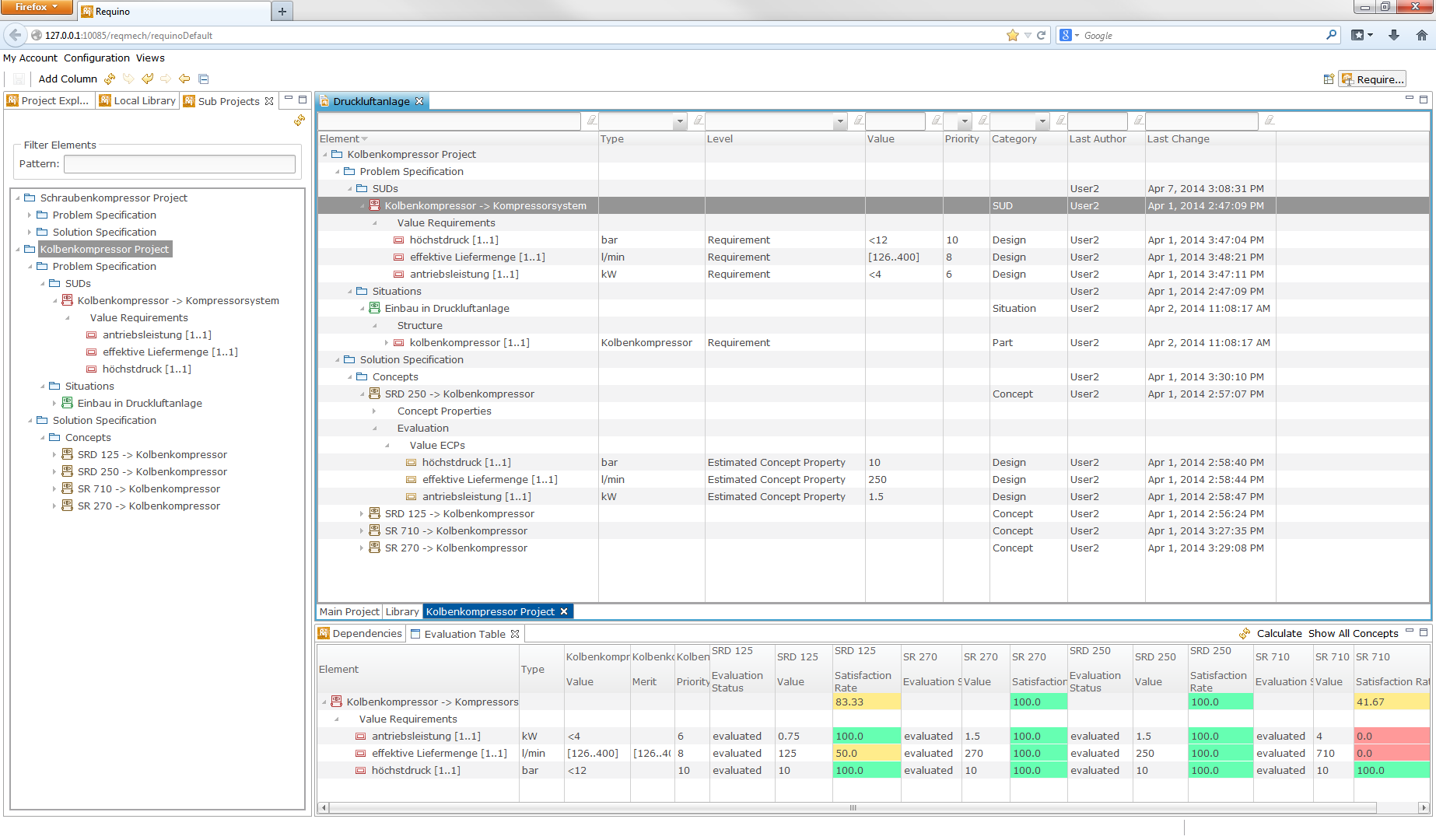

Requirements Evaluation

Design Space Exploration - Requino allows the design of first concepts based on the defined requirements, to compare them and validate them against the specified requirements continuously over the whole project. Hence, Requino makes it possible to explore several concept alternatives to determine in an early phase which concept is the best solution fitting the requirements and should be further developed.

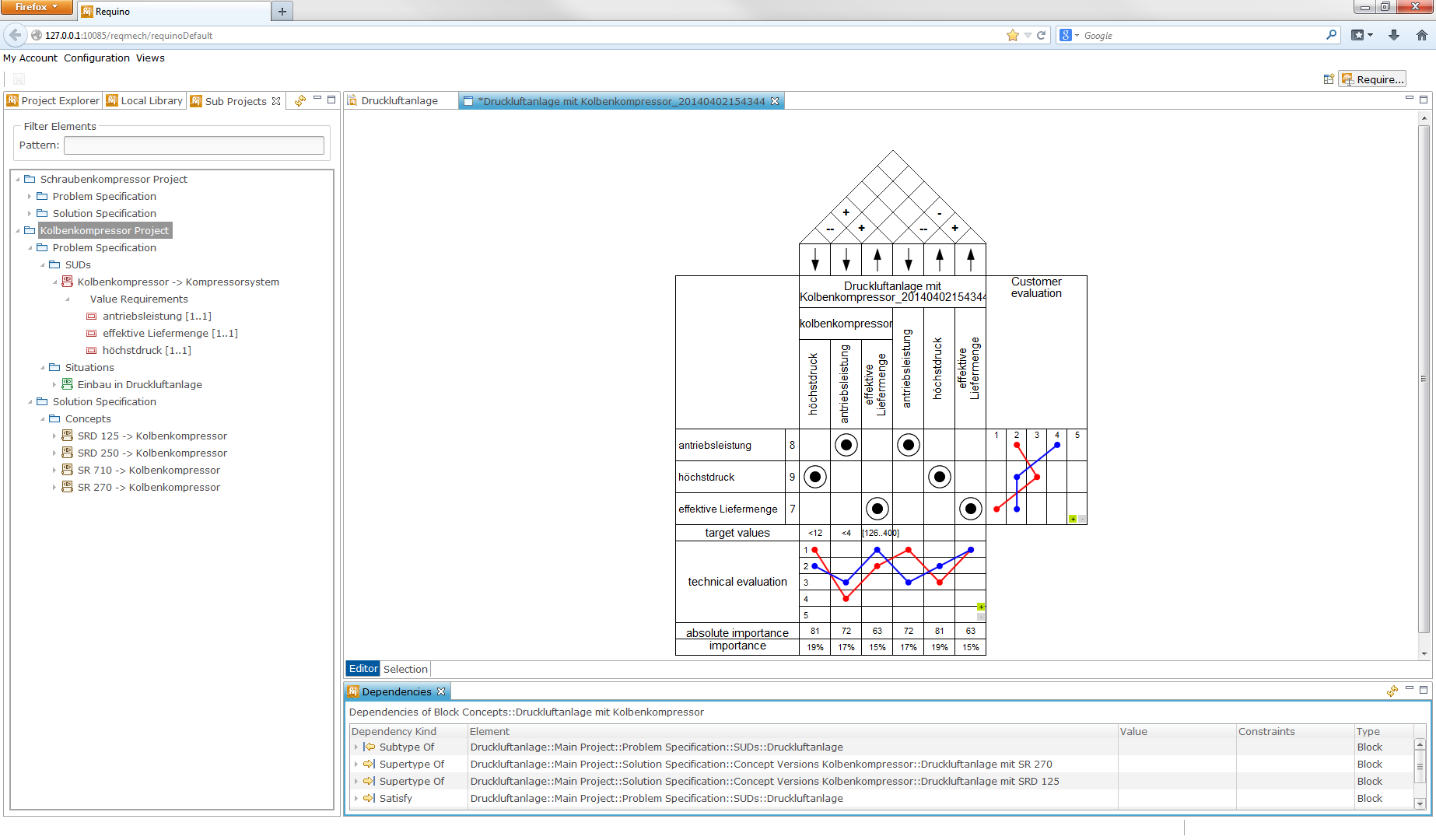

QFD and FMEA

Requino integrates analysis methods like FMEA (Failure Mode and Effects Analysis) and QFD (Quality Function Deployment) which are partially generated from the requirements model.
